HR 9834

type CH · family 291 · 4 windings · 172 g

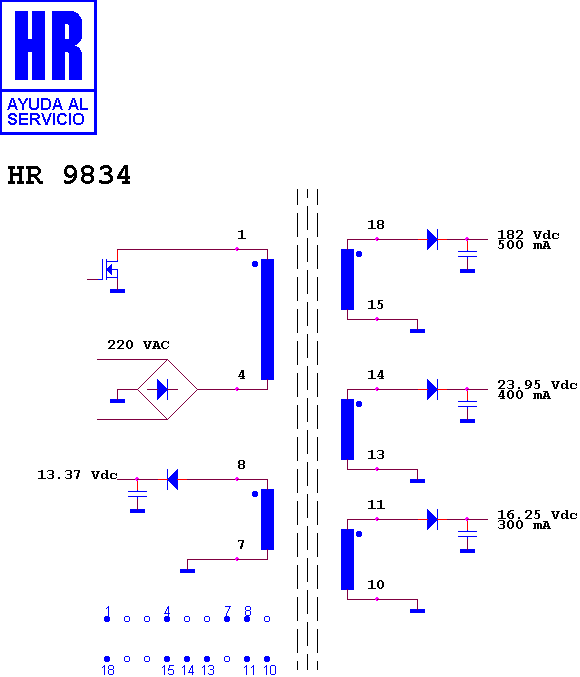

Schematic diagram for HR 9834 — schematic

Manufacturer equivalents (2)

28045095 · 5-057-120

Search this part in the full database
