HR 9832

type CH · family 291 · 5 windings · 172 g

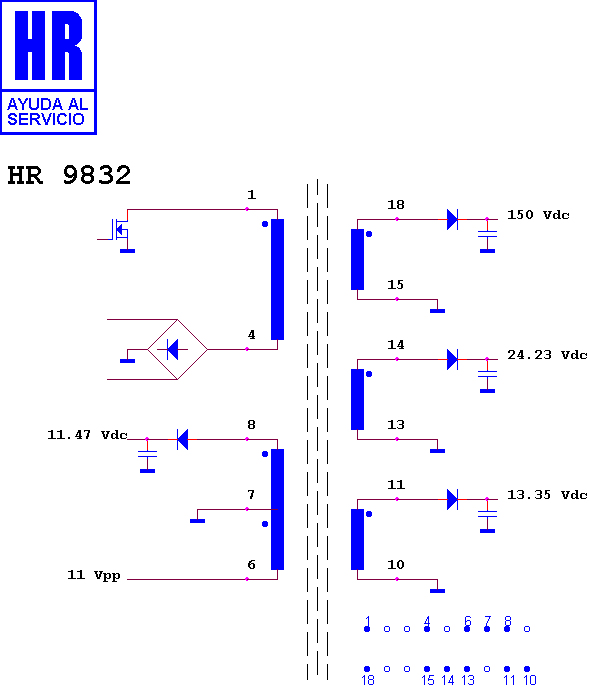

Schematic diagram for HR 9832 — schematic

Manufacturer equivalents (3)

28385019 · 5-058-120 · TR 07.164

Search this part in the full database
