HR 9829

type CH · family 276 · 4 windings · 122 g

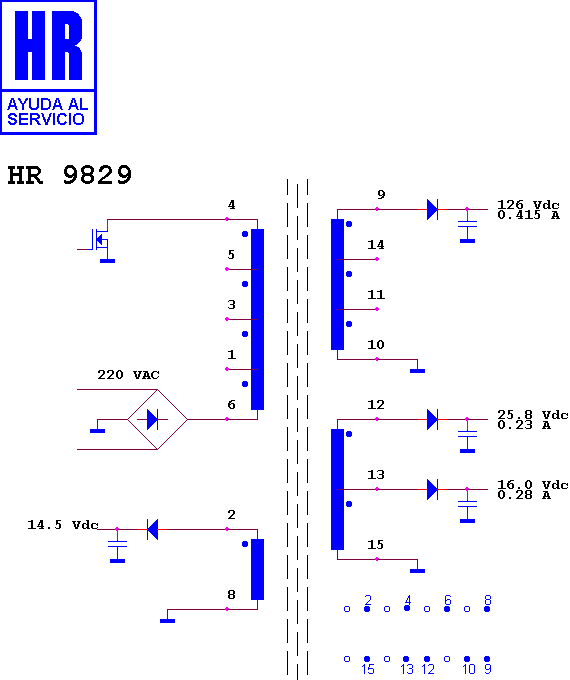

Schematic diagram for HR 9829 — schematic

Manufacturer equivalents (2)

31000094 · S 31000094

Search this part in the full database
