HR 9827

type CH · family 271 · 5 windings · 172 g

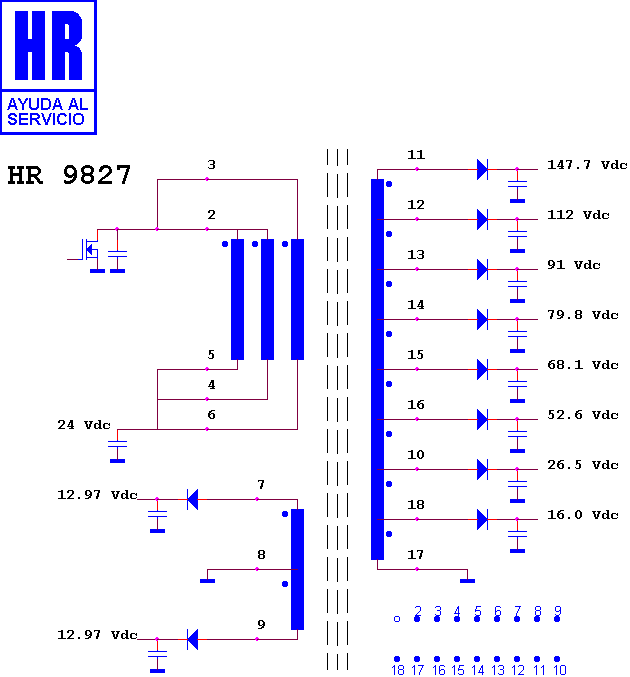

Schematic diagram for HR 9827 — schematic

Manufacturer equivalents (3)

2082.0943 · 2082.0943 A · 341703

Search this part in the full database
