HR 9822

type CH · family 271 · 5 windings · 172 g

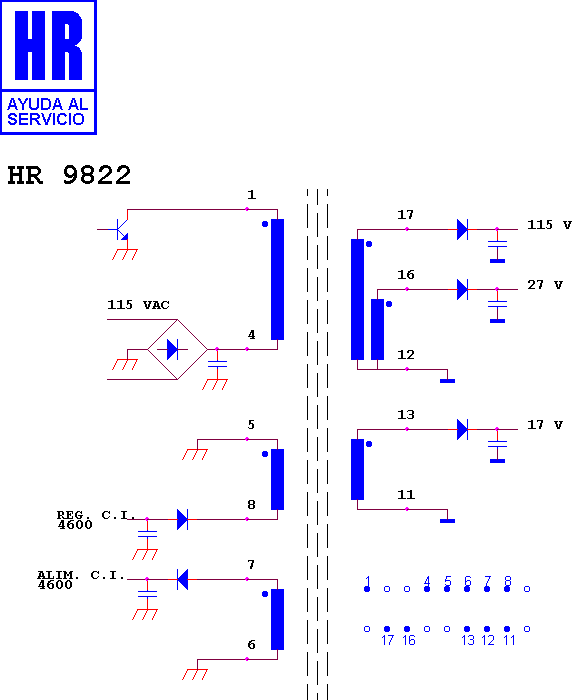

Schematic diagram for HR 9822 — schematic

Manufacturer equivalents (1)

2082.0013

Search this part in the full database
