HR 9819

type CH · family 273 · 3 windings · 210 g

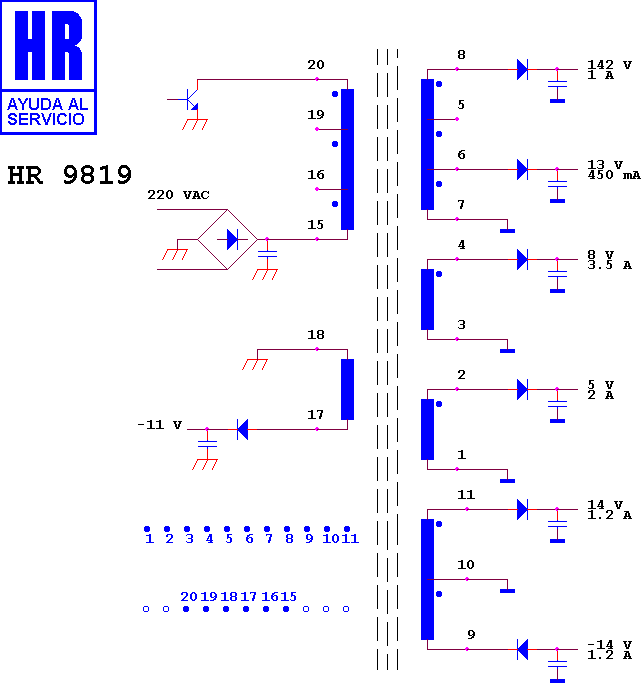

Schematic diagram for HR 9819
schematic

Manufacturer equivalents (2)

RTRNZ0566BMZZ · Z 0566 BM

Fitted to (3)

SHARP 81 EF 19 E · SHARP 81 EF 20 E · SHARP CHASIS DA 100 W
