HR 9814

type CH · family 272 · 5 windings · 210 g

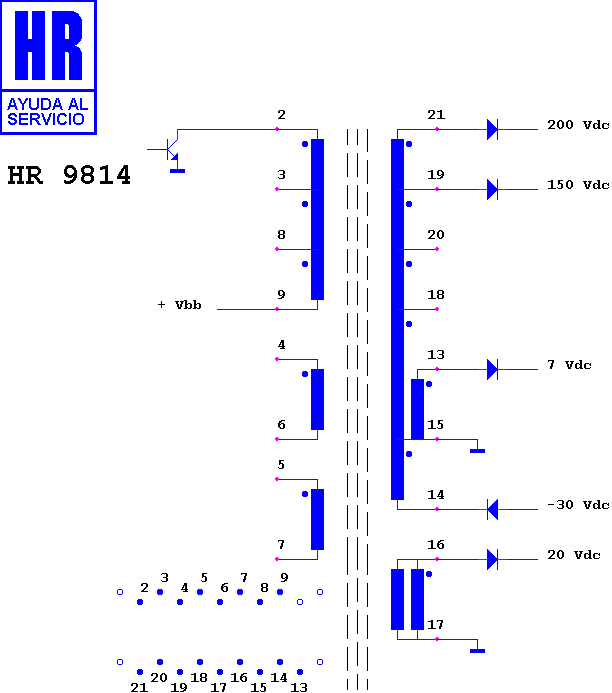

Schematic diagram for HR 9814 — schematic

Manufacturer equivalents (2)

047.953697 · 433 TF 0699

Search this part in the full database
