HR 9813

type CH · family 272 · 4 windings · 218 g

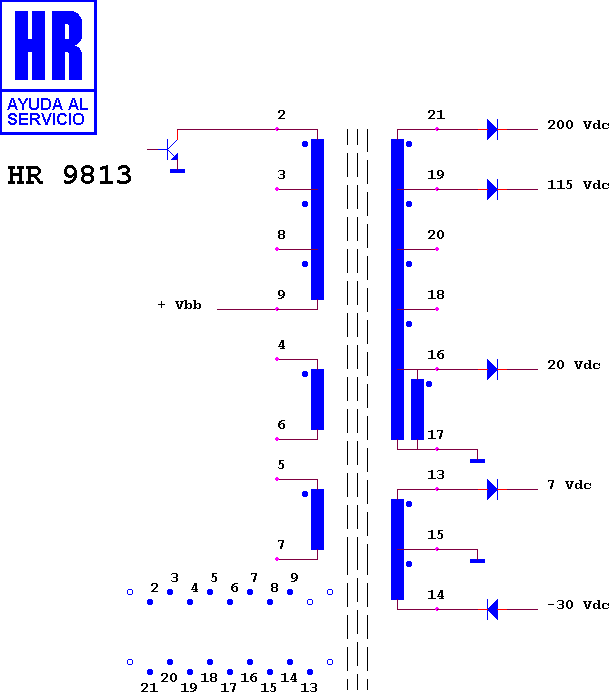

Schematic diagram for HR 9813 — schematic

Manufacturer equivalents (3)

047.978288 · 309 307 532 · 433 TX 0639

Search this part in the full database
