HR 9812

type CH · family 272 · 3 windings · 206 g

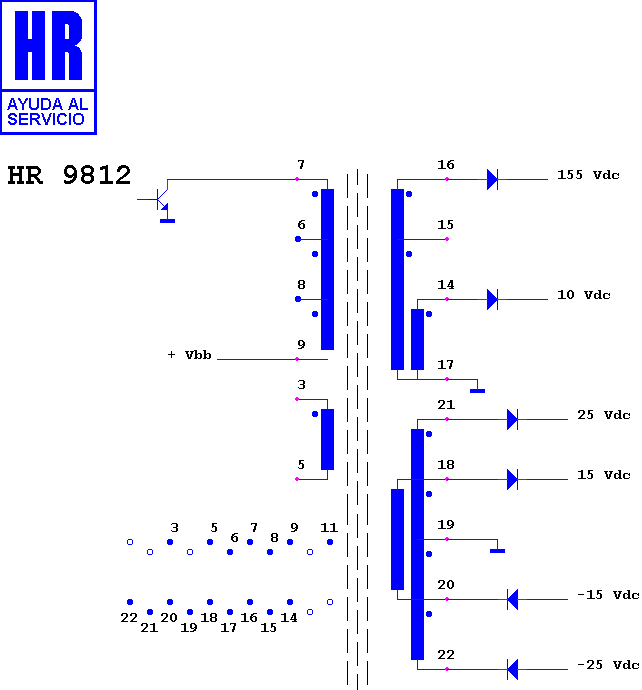

Schematic diagram for HR 9812 — schematic

Manufacturer equivalents (4)

93529.00 · 93529.01 · RTRNZ0507BMZZ · Z 0507 BM

Search this part in the full database
