HR 9811

type CH · family 272 · 3 windings · 210 g

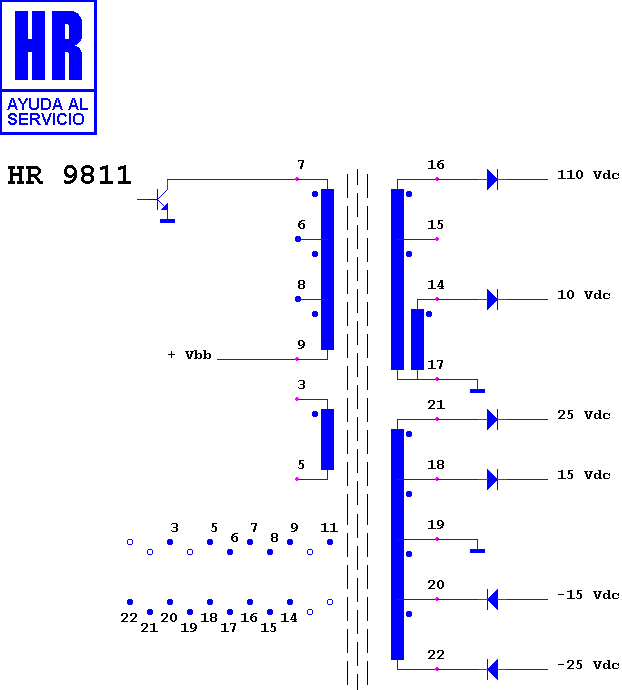

Schematic diagram for HR 9811 — schematic

Manufacturer equivalents (4)

93530.00 · 93530.01 · RTRNZ0509BMZZ · Z 0509 BM

Search this part in the full database
