HR 9806

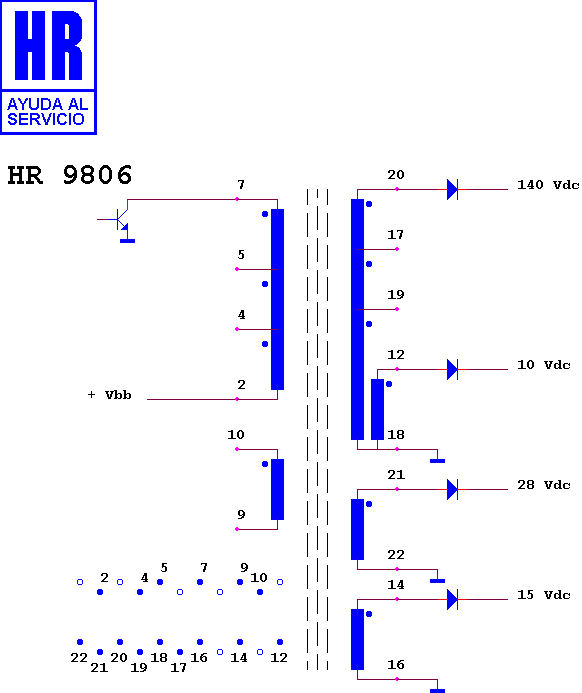

Schematic diagram for HR 9806 — schematic

Manufacturer equivalents (2)

400110.00 · TR 4674

Search this part in the full database
