HR 9803

type CH · family 272 · 4 windings · 207 g

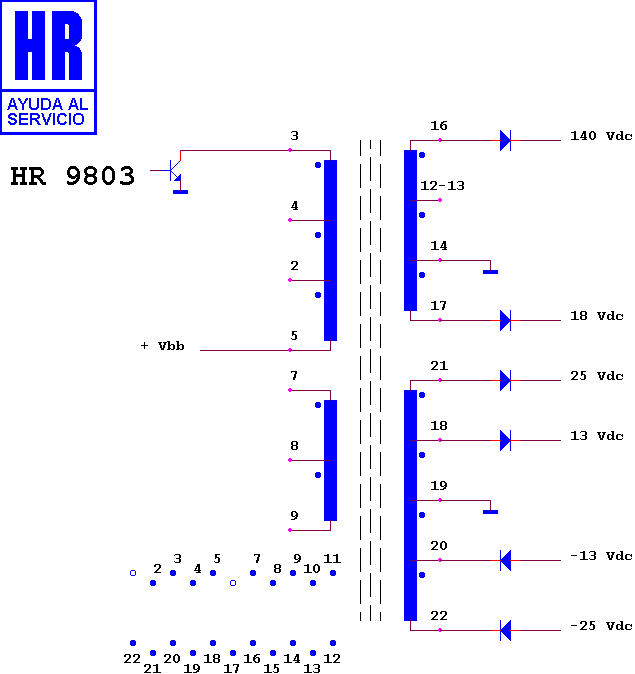

Schematic diagram for HR 9803
schematic

Manufacturer equivalents (4)

93515.00 · 93515.01 · RTRNZ0369BMZZ · Z 0369 BM

Fitted to (2)

SHARP CHASIS 8 P LS 25" · SHARP CHASIS 8 P LS 28"
