HR 9802

type CH · family 272 · 5 windings · 223 g

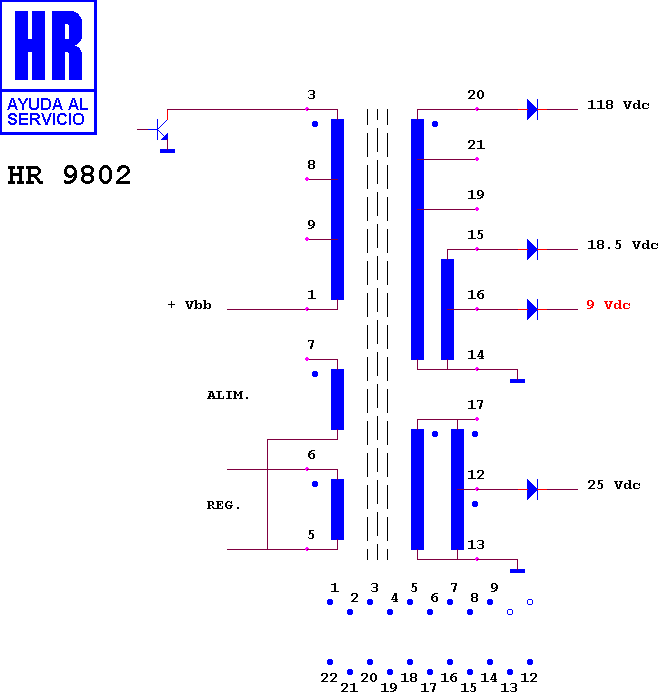

Schematic diagram for HR 9802
schematic

Manufacturer equivalents (10)

093-01012/0.9 · 093-01012/1.7 · 093-01024/0.5 · 93-01012/0.9 · 93-01012/1.7 · 93-01024/0.5 · 93511.00 · 93511.01 · 93514.00 · 93514.01

Fitted to (5)

FISHER FTS 854 · SANYO CEP 1795 · SANYO CEP 2190 · SANYO CEP 2190 21" MD · SANYO CEP 2195
