HR 9709

type CH · family 203 · 4 windings · 211 g

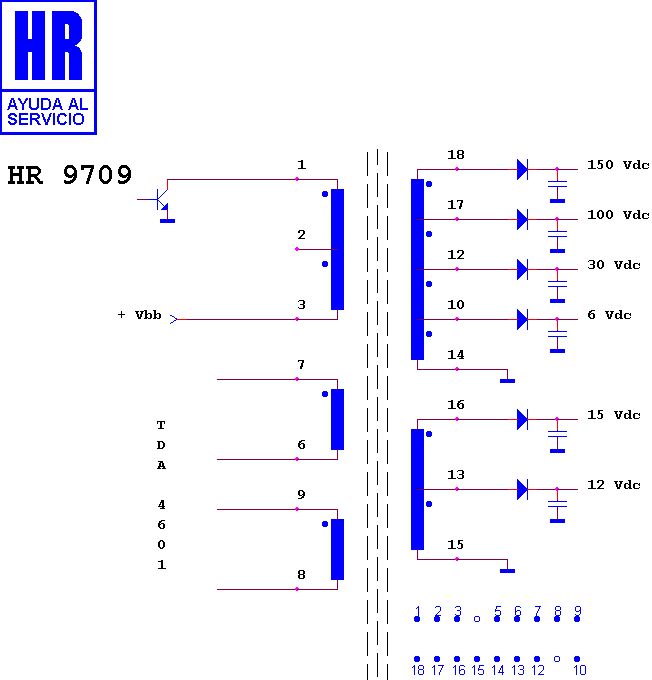

Schematic diagram for HR 9709 — schematic

Manufacturer equivalents (1)

1.33.021855

Search this part in the full database
