HR 9704

type CH · family 203 · 5 windings · 201 g

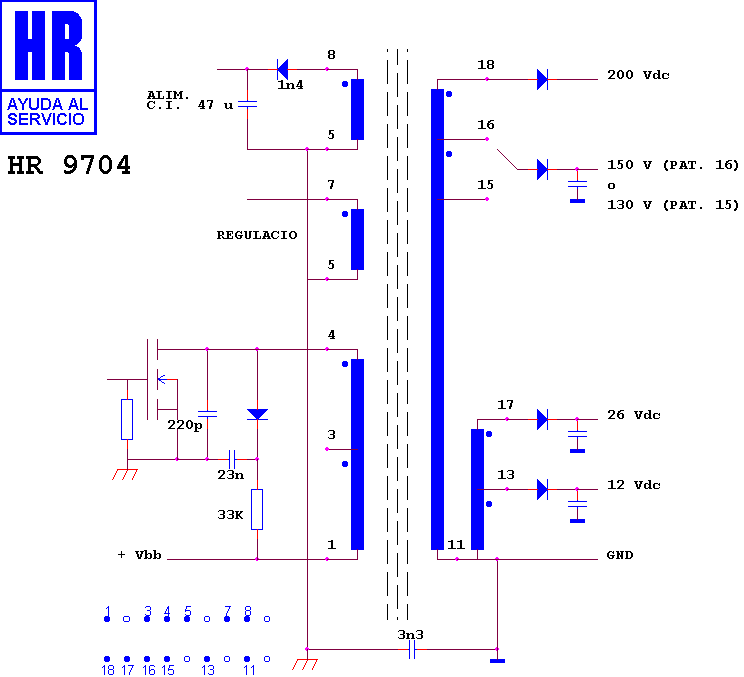

Schematic diagram for HR 9704 — schematic

Manufacturer equivalents (1)

HR 9704
