HR 9684

type CH · family 203 · 5 windings · 275 g

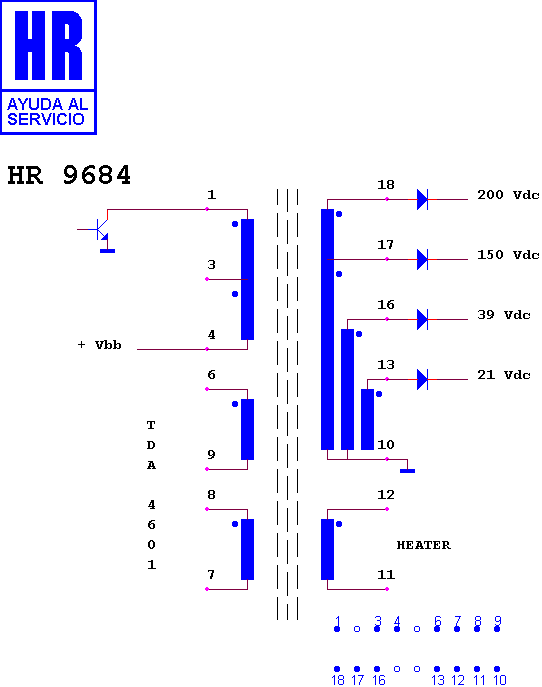

Schematic diagram for HR 9684
schematic

Manufacturer equivalents (3)

29.6035 · 54 930 0015 · ME/7031-00

Fitted to (6)

SEI-SINUDYNE CHASIS P 1000 · SEI-SINUDYNE CHASIS P 2000 · SEI-SINUDYNE CHASIS P 3000 · SINUDYNE CHASIS P 1000 · SINUDYNE CHASIS P 2000 · SINUDYNE CHASIS P 3000

Search this part in the full database
