HR 9678

type CH · family 203 · 4 windings · 281 g

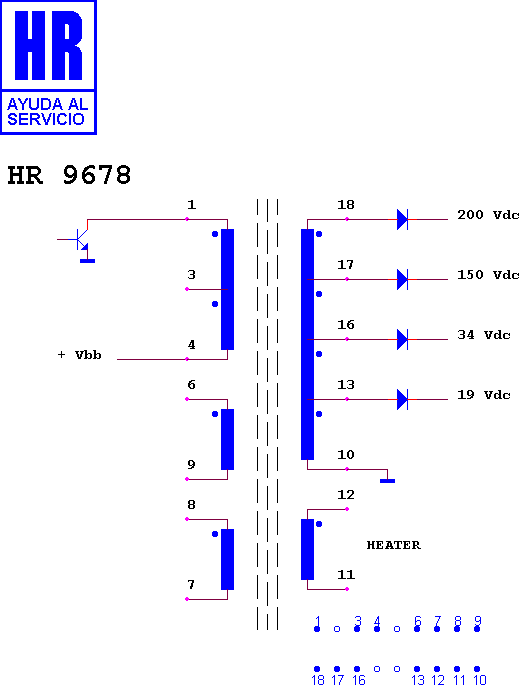

Schematic diagram for HR 9678
schematic

Manufacturer equivalents (3)

29.6023 · 54 930 0010 · ME/7030-00

Fitted to (6)

SEI-SINUDYNE CHASIS P 1000 · SEI-SINUDYNE CHASIS P 2000 · SEI-SINUDYNE CHASIS P 3000 · SINUDYNE CHASIS P 1000 · SINUDYNE CHASIS P 2000 · SINUDYNE CHASIS P 3000
