HR 9675

type CH · family 205 · 4 windings · 236 g

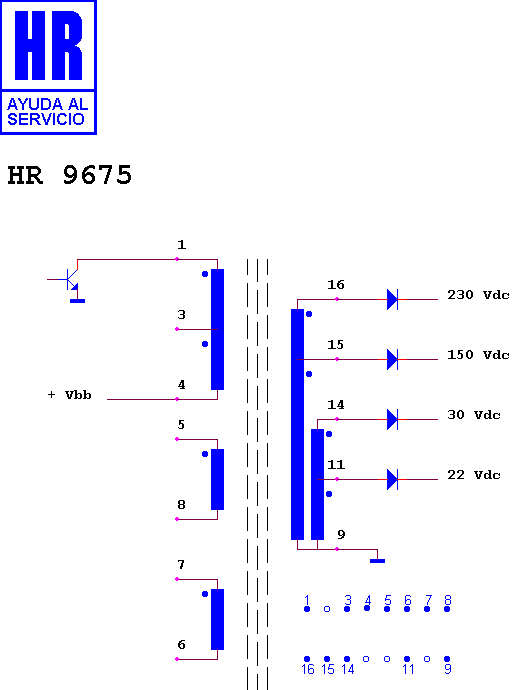

Schematic diagram for HR 9675
schematic

Manufacturer equivalents (5)

29.6028 · AZ 3-5650 · AZ 5650 · ME/7016-00 · WTR 56/50

Fitted to (4)

CREZAR CZ 34-2 · DUMONT 2421 · GALAXY 200-1 · SAMBER'S / NUOVA SAMBER'S 200-1
