HR 9652

4 windings

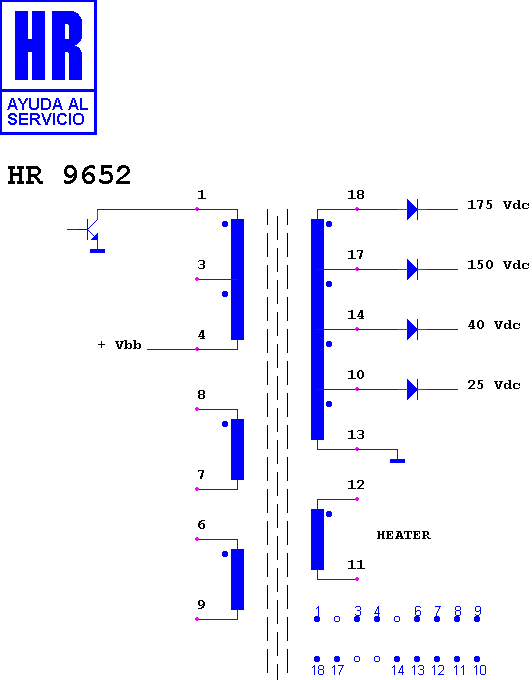

Schematic diagram for HR 9652
schematic

Manufacturer equivalents (3)

047.969564 · 309 307 892 · ME/7056-00

Fitted to (3)

C.G.E. CHASIS 712 A · IMPERIAL CHASIS 712 A · TELEFUNKEN CHASIS 712 A
