HR 9651

4 windings

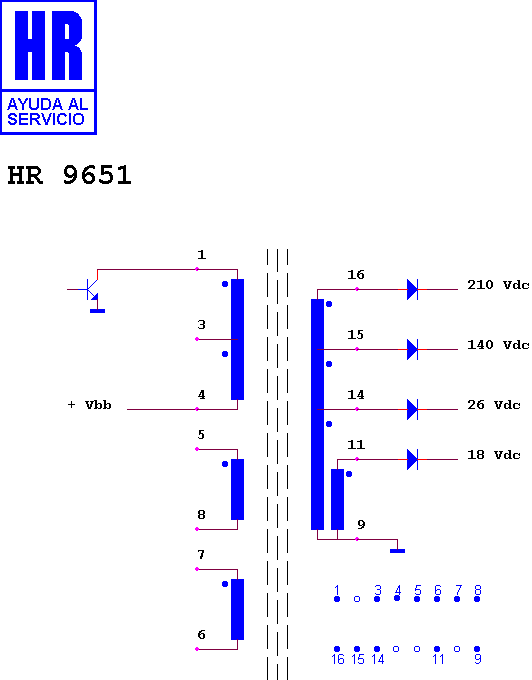

Schematic diagram for HR 9651 — schematic

Manufacturer equivalents (2)

93651.00 · AZ 5615

Search this part in the full database
