HR 9646

type CH · family 203 · 4 windings · 276 g

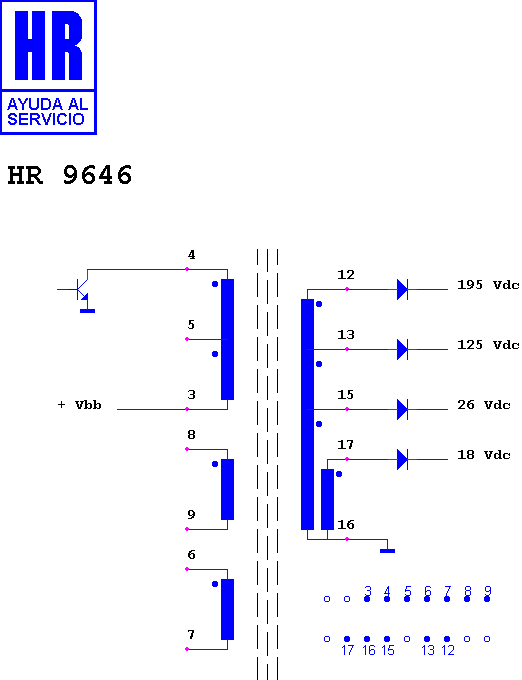

Schematic diagram for HR 9646 — schematic

Manufacturer equivalents (1)

93646.00

Fitted to (1)

NORDMENDE SPECTRA COLOR

Search this part in the full database
