HR 9643

type CH · family 203 · 5 windings · 260 g

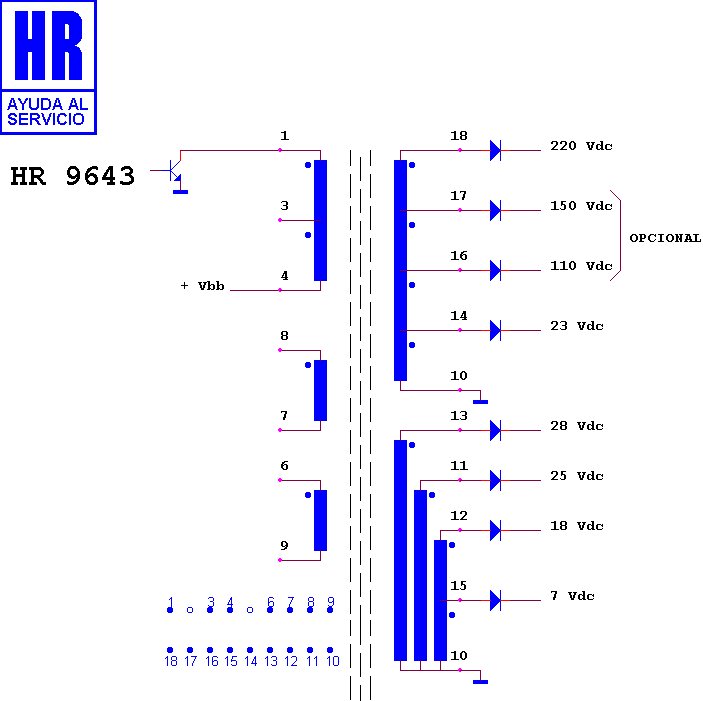

Schematic diagram for HR 9643 — schematic

Manufacturer equivalents (2)

047.951054 · ME/7059-00

Fitted to (3)

C.G.E. CHASIS 714 · IMPERIAL CHASIS 714 · TELEFUNKEN CHASIS 714
