HR 9638

type CH · family 203 · 4 windings · 277 g

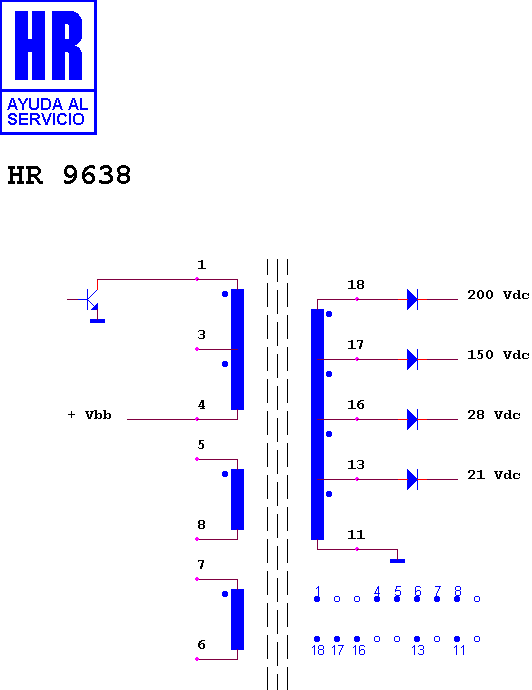

Schematic diagram for HR 9638
schematic

Manufacturer equivalents (4)

45 000 2022 · 490-80792 · 54 930 0008 · ME/7091-00

Fitted to (1)

LOEWE / LOEWE-OPTA CHASIS C 7000
