HR 9627

type CH · family 205 · 4 windings · 226 g

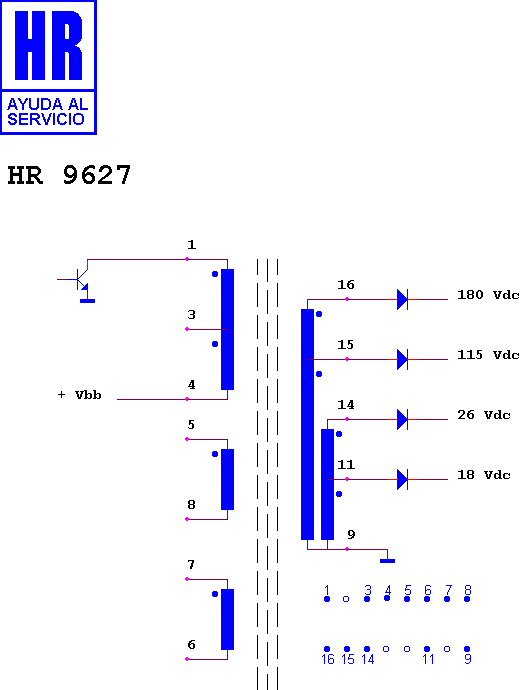

Schematic diagram for HR 9627
schematic

Manufacturer equivalents (6)

29.6051 · 54 940 0002 · 54 940 0010 · ME/7018-00 · SM 42/32 · TAC 116

Fitted to (5)

CENTURY P 1036 · DIAMOND 5020 · EUROPHON CTV 16" · G.B.C. 5020-90 · KASTLE 5020
