HR 9626

type CH · family 205 · 4 windings · 284 g

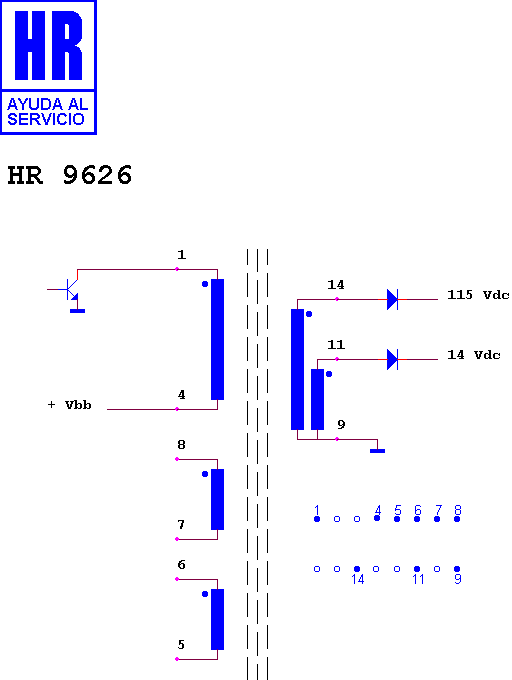

Schematic diagram for HR 9626 — schematic

Manufacturer equivalents (2)

93729.00 · 93729.01

Search this part in the full database
