HR 9625

type CH · family 203 · 4 windings · 288 g

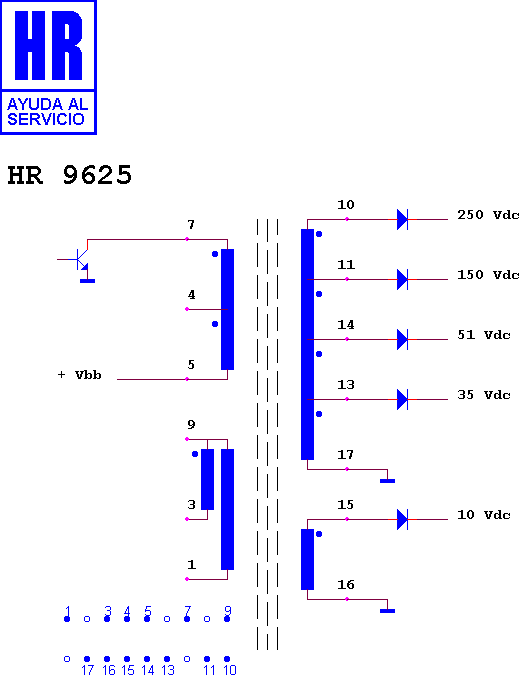

Schematic diagram for HR 9625
schematic

Manufacturer equivalents (2)

8 667 210 355 · ME/7045-00

Fitted to (1)

SIEMENS CHASIS FM 100-20
