HR 9624

type CH · family 203 · 3 windings · 289 g

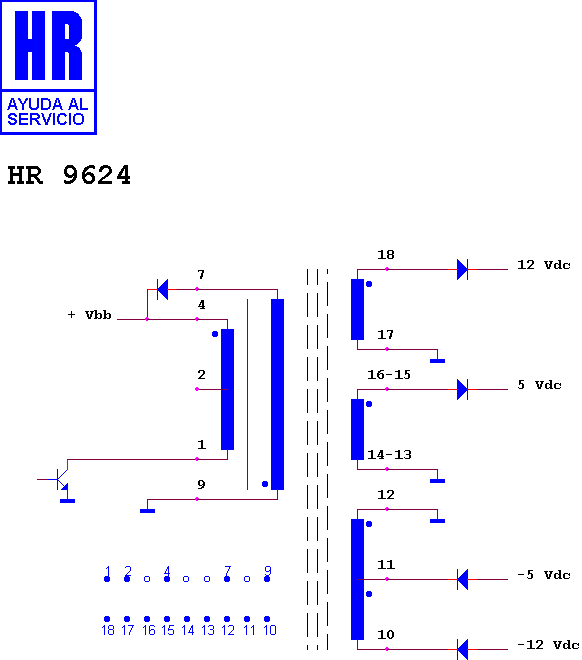

Schematic diagram for HR 9624 — schematic

Manufacturer equivalents (2)

93787.00 · 93787.01

Search this part in the full database
