HR 9612

type CH · family 203 · 4 windings · 288 g

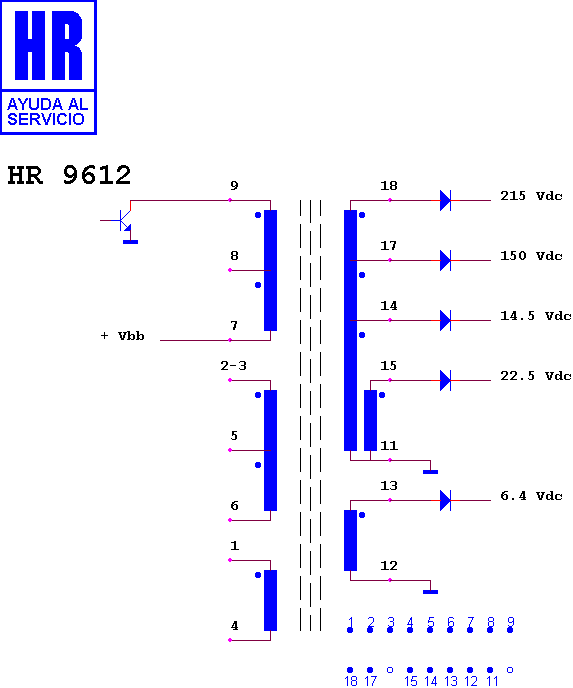

Schematic diagram for HR 9612
schematic

Manufacturer equivalents (6)

38121 181 12 · 9304 · 93602.00 · AZ 5601 · ME/7111-00 · WTR 56/01

Fitted to (1)

GRUNDIG 9304
