HR 9609

type CH · family 203 · 4 windings · 288 g

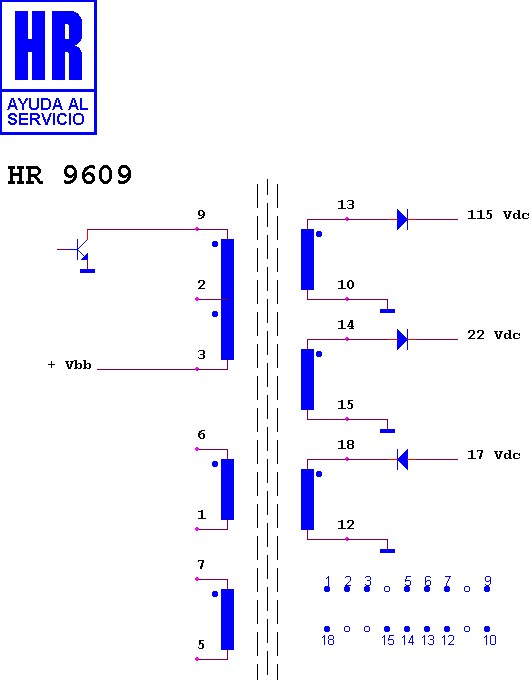

Schematic diagram for HR 9609
schematic

Manufacturer equivalents (4)

047.952270 · 210-0034-077 · 8 667 210 359 · ME/7057-00

Fitted to (6)

C.G.E. CHASIS 415 · C.G.E. CHASIS 415 A · IMPERIAL CHASIS 415 · IMPERIAL CHASIS 415 A · TELEFUNKEN CHASIS 415 · TELEFUNKEN CHASIS 415 A
