HR 9568

type CH · family 201 · 6 windings · 194 g

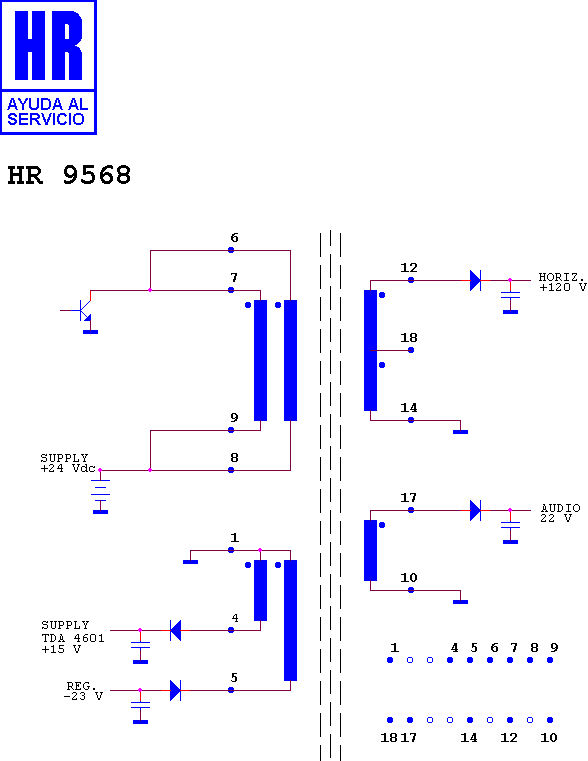

Schematic diagram for HR 9568 — schematic

Manufacturer equivalents (1)

HR 9568
