HR 9564

type CH · family 201 · 5 windings · 194 g

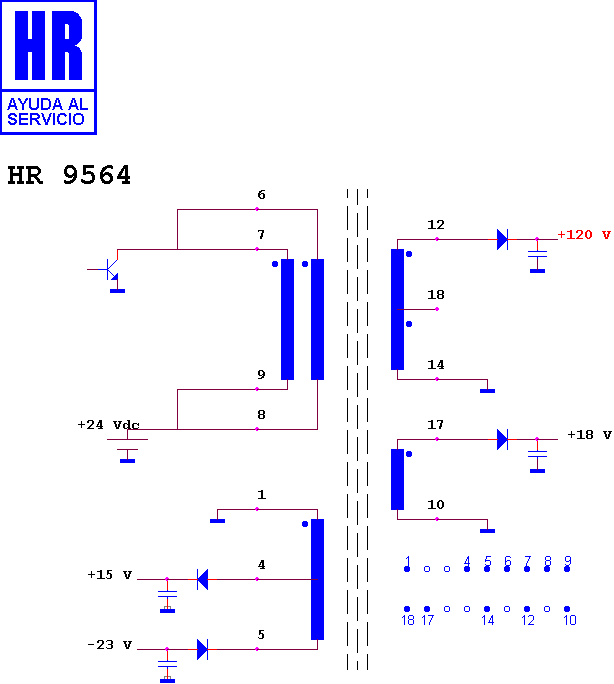

Schematic diagram for HR 9564 — schematic

Manufacturer equivalents (2)

32000140 · 32038700

Search this part in the full database
