HR 9561

type CH · family 201 · 5 windings · 194 g

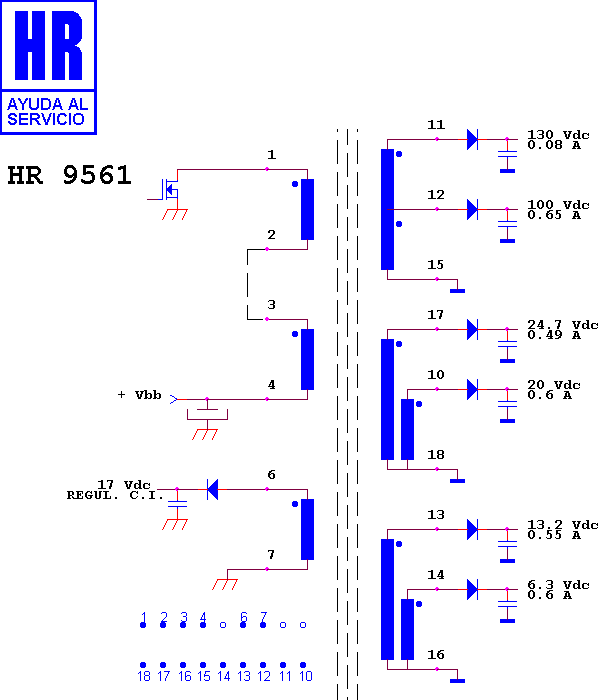

Schematic diagram for HR 9561 — schematic

Manufacturer equivalents (1)

32036590

Search this part in the full database
