HR 9560

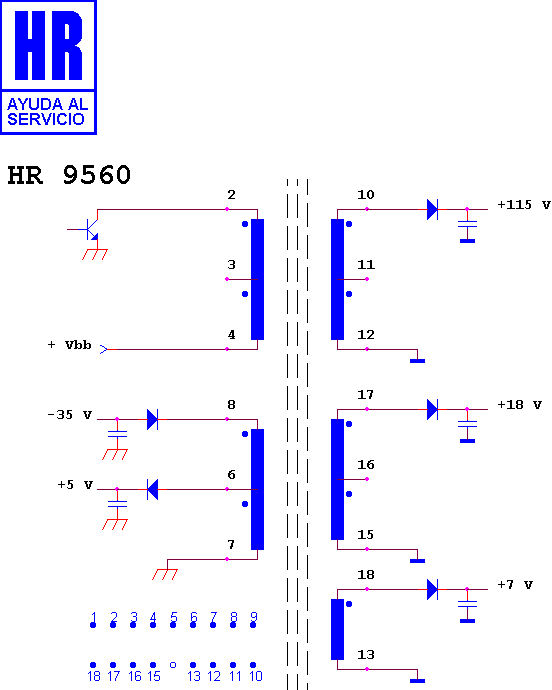

Schematic diagram for HR 9560
schematic

Manufacturer equivalents (5)

1-450-217-11 · 1-450-217-21 · 1-450-217-22 · 470036.76 · 93733.01

Fitted to (4)

SONY KV M 1420 A · SONY KV M 1420 E · SONY KV M 1420 L · SONY KV M 1420 U

Search this part in the full database
