HR 9552

type CH · family 201 · 3 windings · 208 g

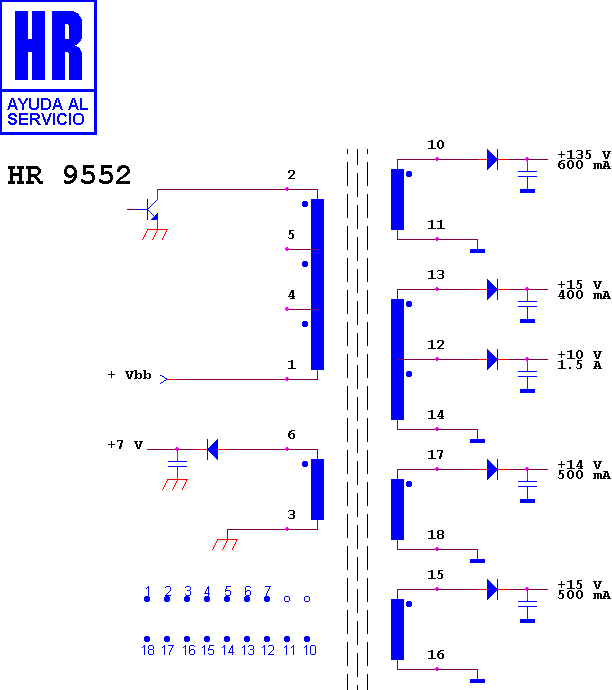

Schematic diagram for HR 9552 — schematic

Manufacturer equivalents (1)

1-429-219-11

Fitted to (1)

SONY KV V 2110 E

Search this part in the full database
