HR 9550

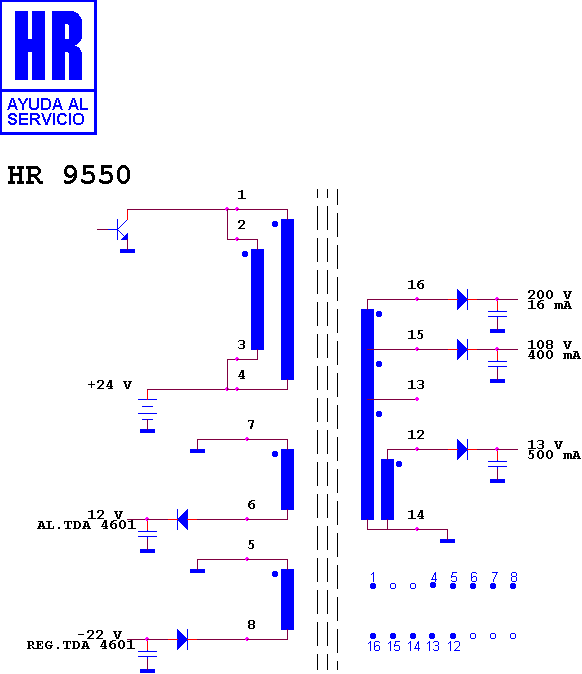

Schematic diagram for HR 9550 — schematic

Manufacturer equivalents (2)

93731.00 · 93731.01
