HR 9546

type CH · family 205 · 5 windings · 280 g

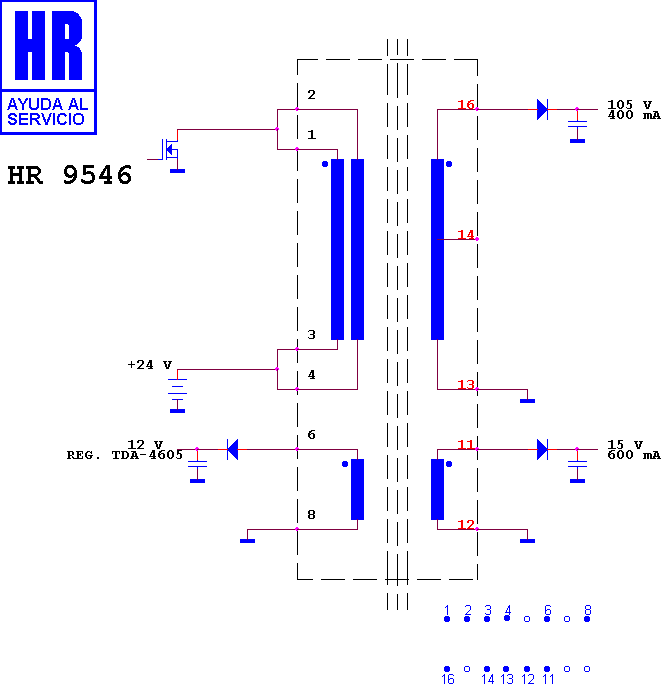

Schematic diagram for HR 9546 — schematic

Manufacturer equivalents (1)

HR 9546

Search this part in the full database
