HR 9540

type CH · family 203 · 5 windings · 215 g

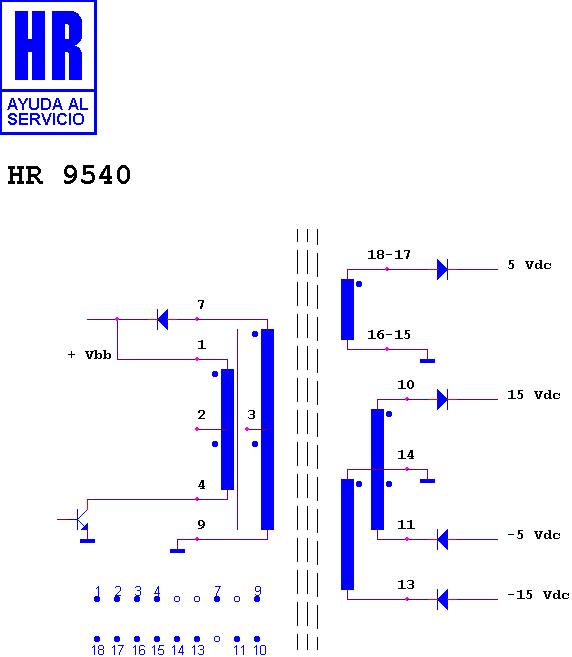

Schematic diagram for HR 9540 — schematic

Manufacturer equivalents (1)

LM 8941-00

Search this part in the full database
