HR 9532

type CH · family 203 · 4 windings · 270 g

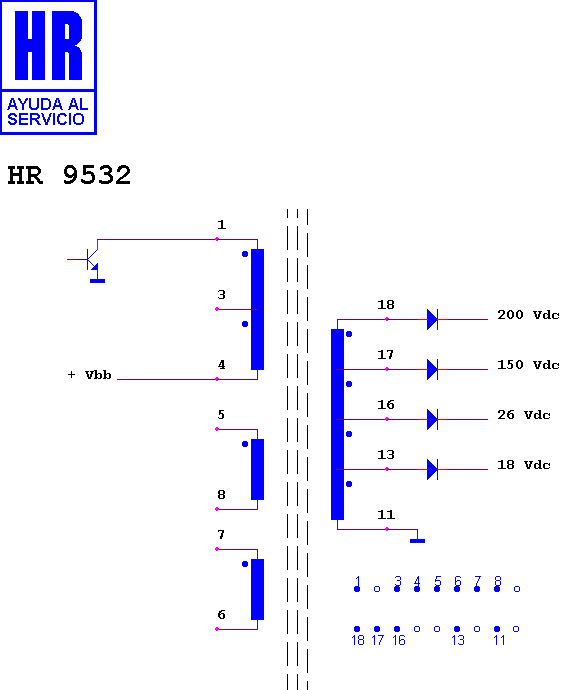

Schematic diagram for HR 9532 — schematic

Manufacturer equivalents (1)

AZ 1-5605 A

Search this part in the full database
