HR 9527

type CH · family 203 · 4 windings · 196 g

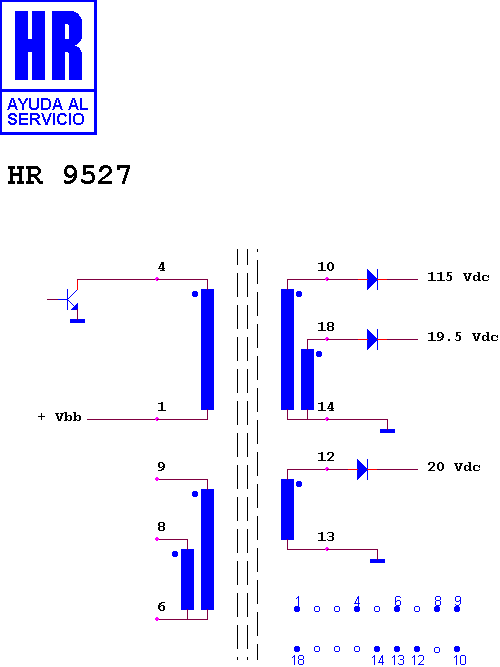

Schematic diagram for HR 9527
schematic

Manufacturer equivalents (13)

093-01022/0.7 · 093-01026/3.7 · 093-01041/0.1 · 2092.2111 · 93-01022/0.7 · 93-01041/0.1 · 93791.00 · 93791.01 · 93791.02 · 93903.00 · 93903.01 · 93903.02 · 93903.03

Fitted to (4)

SANYO CEP 1793 TXT · SANYO CEP 2193 · SANYO CEP 2194 · SANYO CEP 2194 TXT
