HR 9525

type CH · family 203 · 3 windings · 283 g

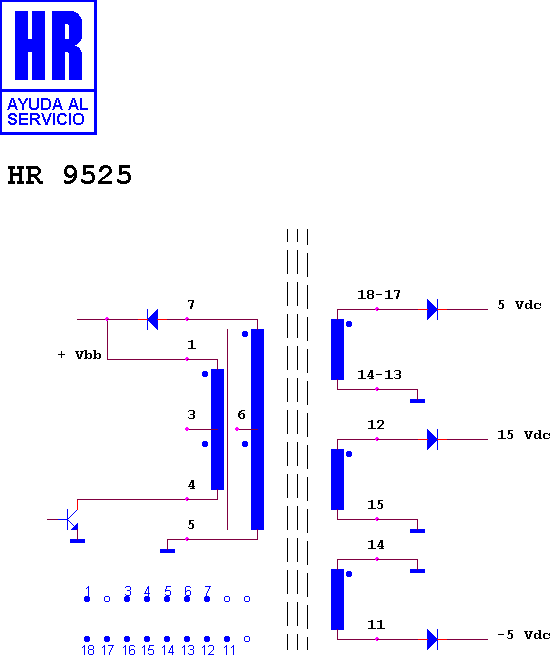

Schematic diagram for HR 9525 — schematic

Manufacturer equivalents (1)

HR 9525

Search this part in the full database
