HR 9515

type CH · family 205 · 4 windings · 171 g

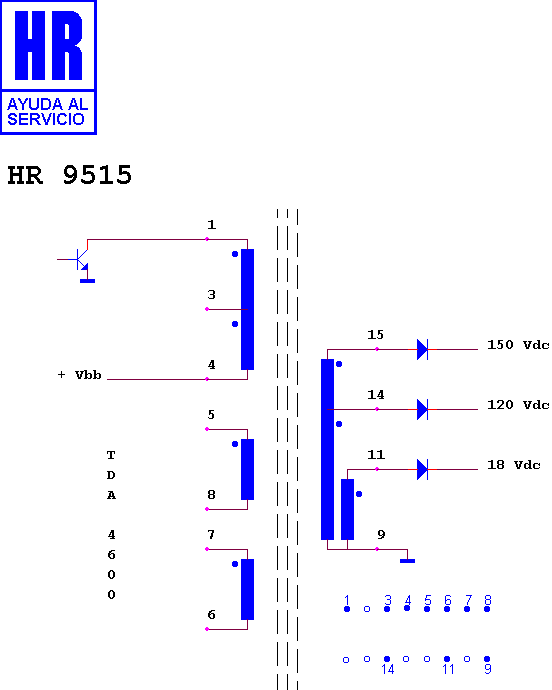

Schematic diagram for HR 9515 — schematic

Manufacturer equivalents (1)

HR 9515

Search this part in the full database
