HR 9512

type CH · family 205 · 5 windings · 175 g

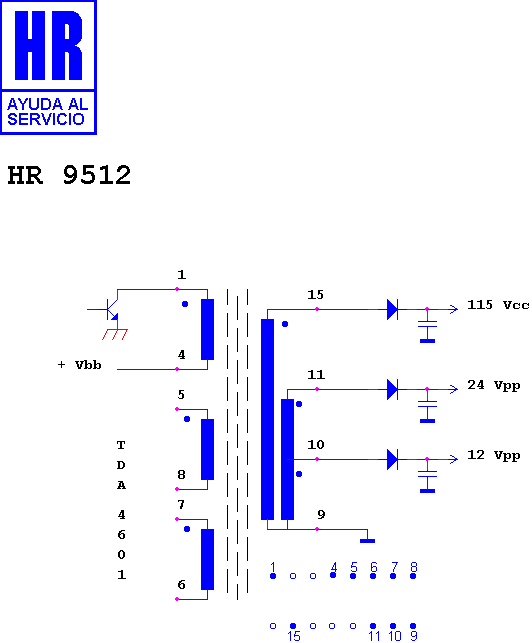

Schematic diagram for HR 9512
schematic

Manufacturer equivalents (1)

93779.00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 9339 · HR 6711

Fitted to (7)

ELBE CHASIS E 10 MD · ELBE SERIE 70-20 · ELBE SERIE 72-20 · ELBE TVC 1403 MD · ELBE TVC 1430 MD · ELBE TVC 1607 MD · ELBE TVC 2072 MD
