HR 9510

type CH · family 203 · 4 windings · 197 g

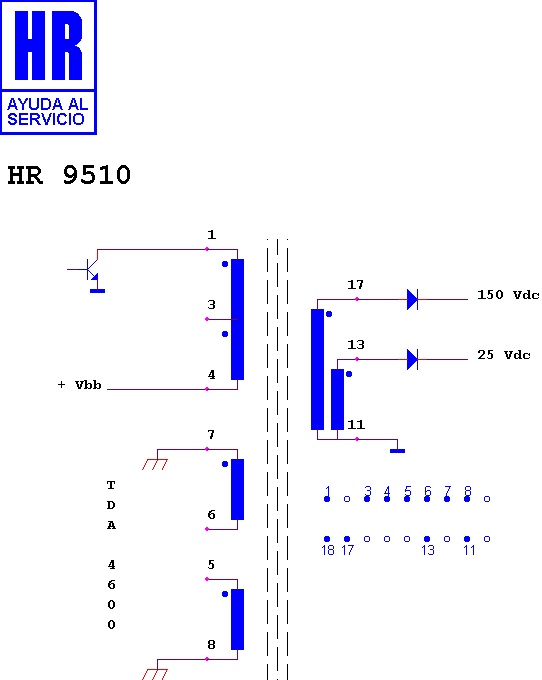

Schematic diagram for HR 9510
schematic

Manufacturer equivalents (3)

93774.00 · 93774.01 · 93774.02

Fitted to (6)

ELBE CHASIS E 10 · ELBE SERIE 70-22 · ELBE SERIE 70-26 · ELBE SERIE 72-26 · ELBE TVC 2270 · ELBE TVC 2670
