HR 9507

type CH · family 203 · 5 windings · 210 g

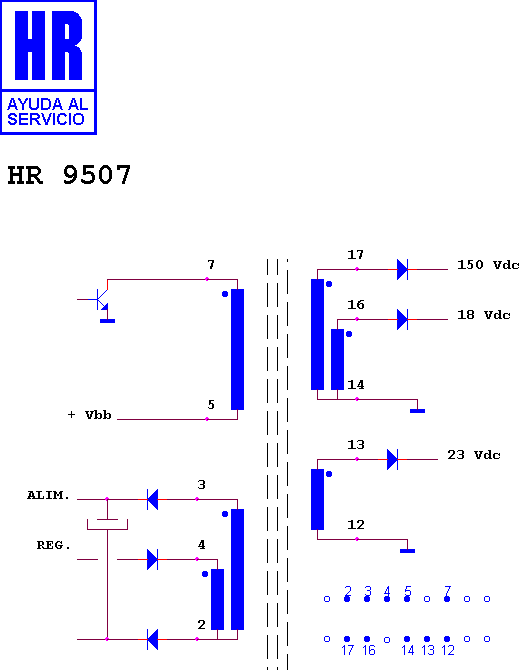

Schematic diagram for HR 9507
schematic

Manufacturer equivalents (6)

093-01013/0.8 · 93-01013/0.8 · 93765.00 · 93765.01 · 93765.02 · AZ 56 SA 1/A

Fitted to (1)

SANYO CTP 7262
