HR 9505

type CH · family 205 · 4 windings · 170 g

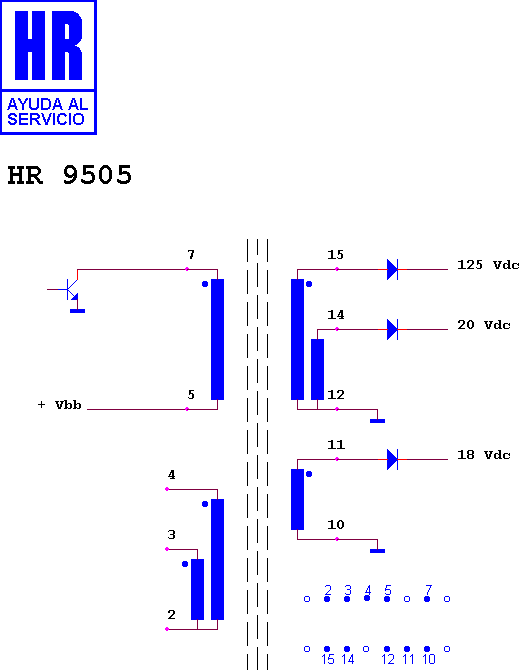

Schematic diagram for HR 9505
schematic

Manufacturer equivalents (7)

093-00057/0.7 · 093-01014/0.7 · 93-00057/0.7 · 93-01014/0.7 · 93758.00 · 93758.01 · 93758.02

Fitted to (6)

SANYO CTP 4228 · SANYO CTP 4228 16" MD · SANYO CTP 4228 E · SANYO CTP 4228 E 16" MD · SANYO CTP 4231 · SANYO CTP 4265
