HR 9499

type CH · family 276 · 4 windings · 122 g

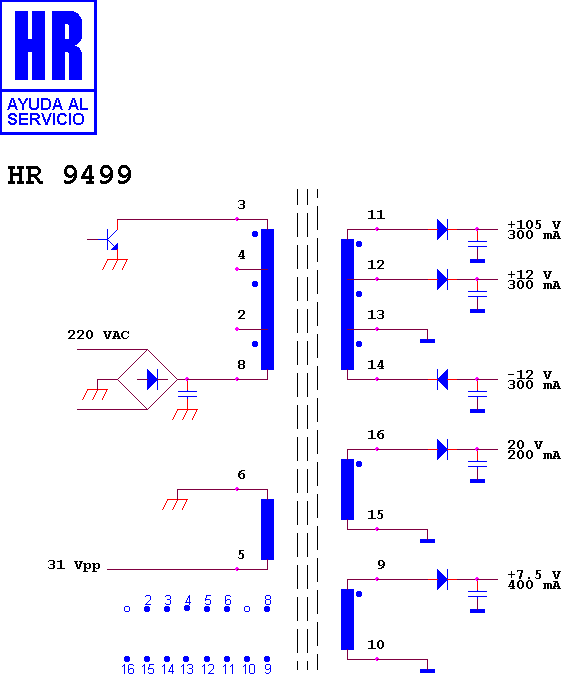

Schematic diagram for HR 9499 — schematic

Manufacturer equivalents (1)

RTRNZ0565BMZZ

Search this part in the full database
