HR 9493

5 windings

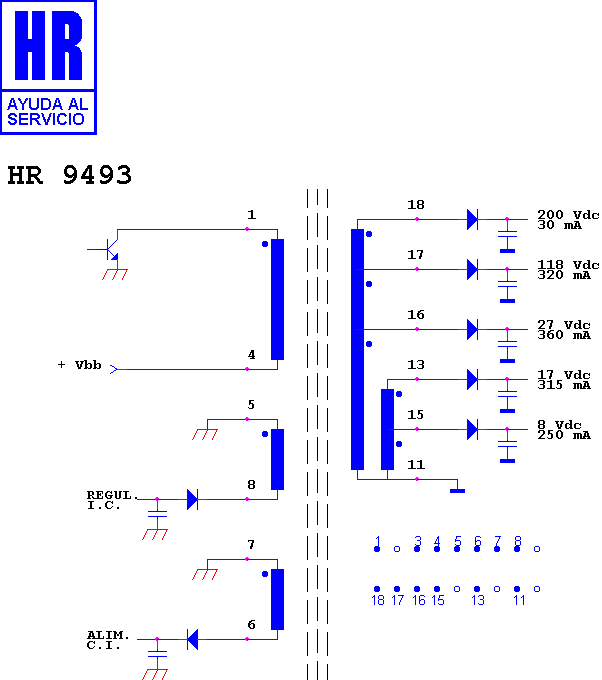

Schematic diagram for HR 9493 — schematic

Manufacturer equivalents (1)

21117

Search this part in the full database
