HR 9492

type CH · family 290 · 3 windings · 252 g

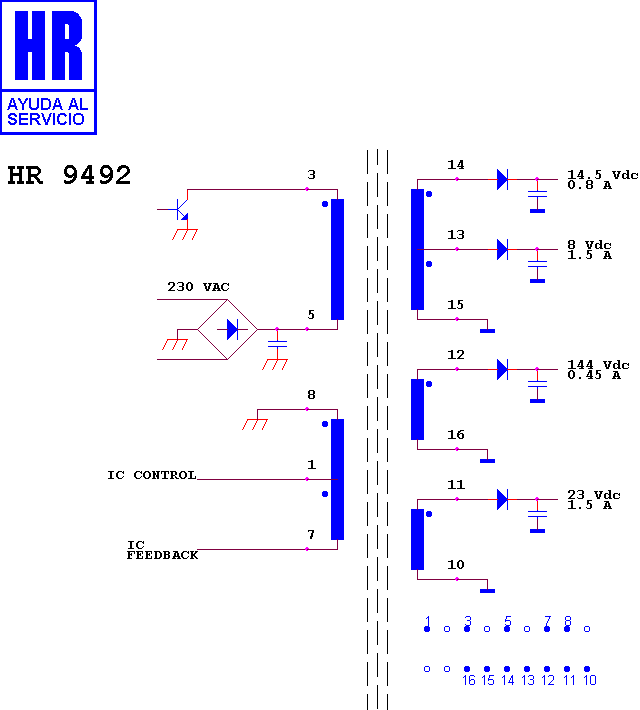

Schematic diagram for HR 9492
schematic

Manufacturer equivalents (5)

2092.2592 · 4011 07 1103 · 411 07 1103 · 62.2124.000 · 62.2142.000

Fitted to (3)

ELBE 2520 · KNEISSEL KN 2830 · SINGER 2501 MTX
