HR 9490

type CH · family 271 · 5 windings · 172 g

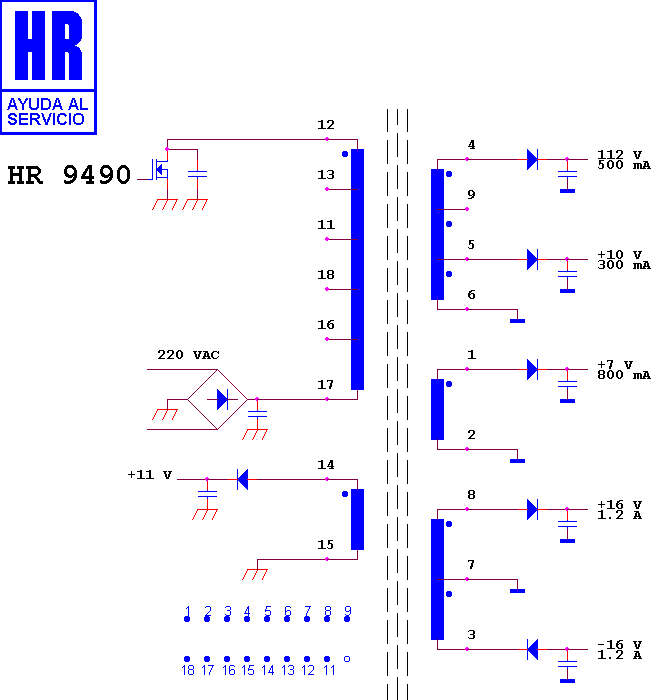

Schematic diagram for HR 9490
schematic

Manufacturer equivalents (7)

105443.50 · 40326-112 · NZ 0559 BM · RTRNZ0559BMZZ · RTRNZ0562BMZZ · Z 0559 BM · Z 0562 BM

Fitted to (4)

SHARP 54 DS 02 S · SHARP 54 DS 03 S · SHARP CHASIS CA 10 · SHARP CHASIS CA 10 21"
