HR 9489

type CH · family 274 · 5 windings · 128 g

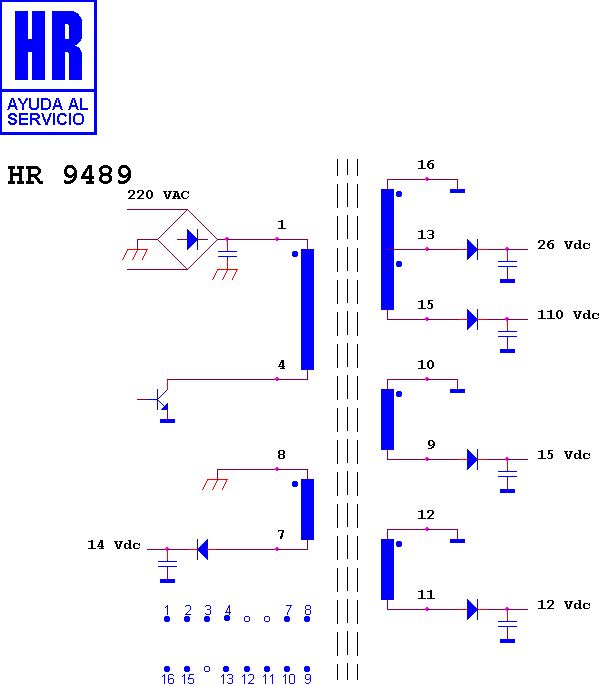

Schematic diagram for HR 9489
schematic

Manufacturer equivalents (4)

93318.00 · 93318.01 · RTRNZ0524BMZZ · Z 0524 BM

Fitted to (7)

SHARP CHASIS 4 BS-A · SHARP DV 3760 H · SHARP DV 3760 S · SHARP DV 3761 H · SHARP DV 3765 S · SHARP DV 3770 H · SHARP DV 3770 S
